okta-product

OKTAKONTROL

235,00  excl. VAT/ customs

Plus 19% MwSt.

Out of stock

Product Description

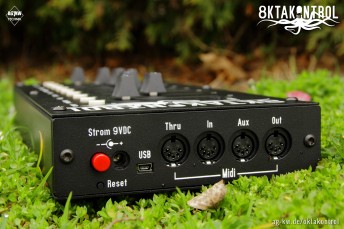

oktakontrol-frontal  oktakontrol-side

Our OKTAKONTROL is a smart addition to the famous Elektron Octatrack. Basically it is a midicontroller-box with 8 high precision faders and 9 buttons to control the tracks in your Octatrack. The Oktakontrol is fitted perfectly to the Octatrack: it is in the same width & height and its sockets are at the sidepanel – so you can place both machines directly next each other. This mechanical detail combined with concentration on the most important functions makes the Oktakontrol a unique & perfect controllerbox for the Elektron Octatrack. – 8x ALPS faders to control track level – 9x buttons to control track mute/solo/arm/user configurable – sturdy case which fits perfectly next to the Octatrack – all sockets at side panel & user-configurable arrangement of sockets – based on Arduino (open source / reprogrammable by experienced user) – Midi IN/ OUT/ THRU/ AUX – mini USB to configure and update Firmware – 9VDC power supply (included) – developed & handcrafted in Germany (on planet Earth 😉 )

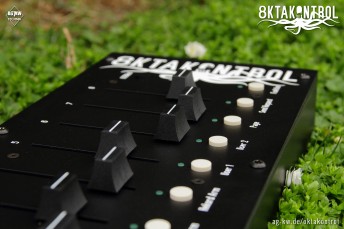

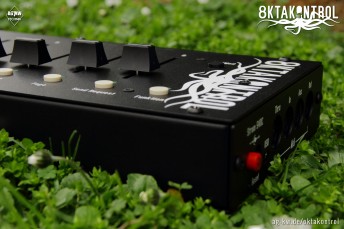

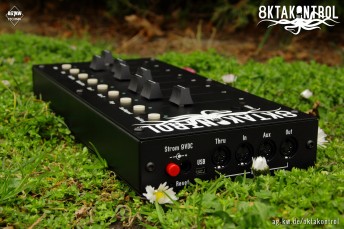

oktakontrol-detail oktakontrol-detail-2 oktakontrol-detail-3 oktakontrol-luna click to enlarge the pictures

Additional Information

Weight 2.1 kg
Fader

8x high precision long life metal ALPS Fader

Buttons

9x with over 2.000.000 cycles

Case

sturdy metall case which fits perfectly to the Octatrack
note: wooden panels are no longer available

Sockets

all sockets at side panel & user-configurable arrangement of sockets

MIDI

Midi IN/ OUT/ THRU/ AUX

USB

standard mini USB cable included

Power

EU power supply included
– input voltage 100-240V AC, 50/60Hz
– output voltage 9V DC 500mA
– EU socket type, you may need an adapter in example for UK/ US/ Japan

Dimensions

Width/Height/Depth: 340mm x 45mm x 150mm

Weight

1,8 Kg

Made

developed & handcrafted in Germany (on planet Earth)
