ALPS 10K Ohm 1B Linear Fader – RS6011SP6003

1,95  excl. VAT/ customs

Plus 19% MwSt.
Delivery Time: on stock

In stock

Product Description

Short description

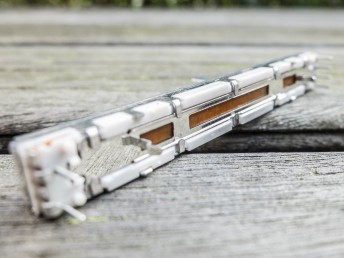

ALPS 60mm fader / slide potentiometer
Datasheet

resistance 10K Ohm
resistance taper 1B
family RS6011SP
operating life 30,000 cycles
bracket / termination solder slug
mount Pin Thru-Hole
maximum operating voltage 150 V AC
RoHs yes

DSCF7311-web DSCF7312-web

Additional Information

Weight 0.1 kg
travel

60mm

resistance

10K Ohm

taper

1B / linear

family

RS6011SP

tolerance

20%

operating life

30,000 cycles

bracket/ termination

solder slug

mount

pin thrugh hole

maximum operating voltage

150 V AC

temperature

-10°C to +60°C

Rohs

yes

dimensions

Length 75mm x Wide 5mm x Height 22mm
